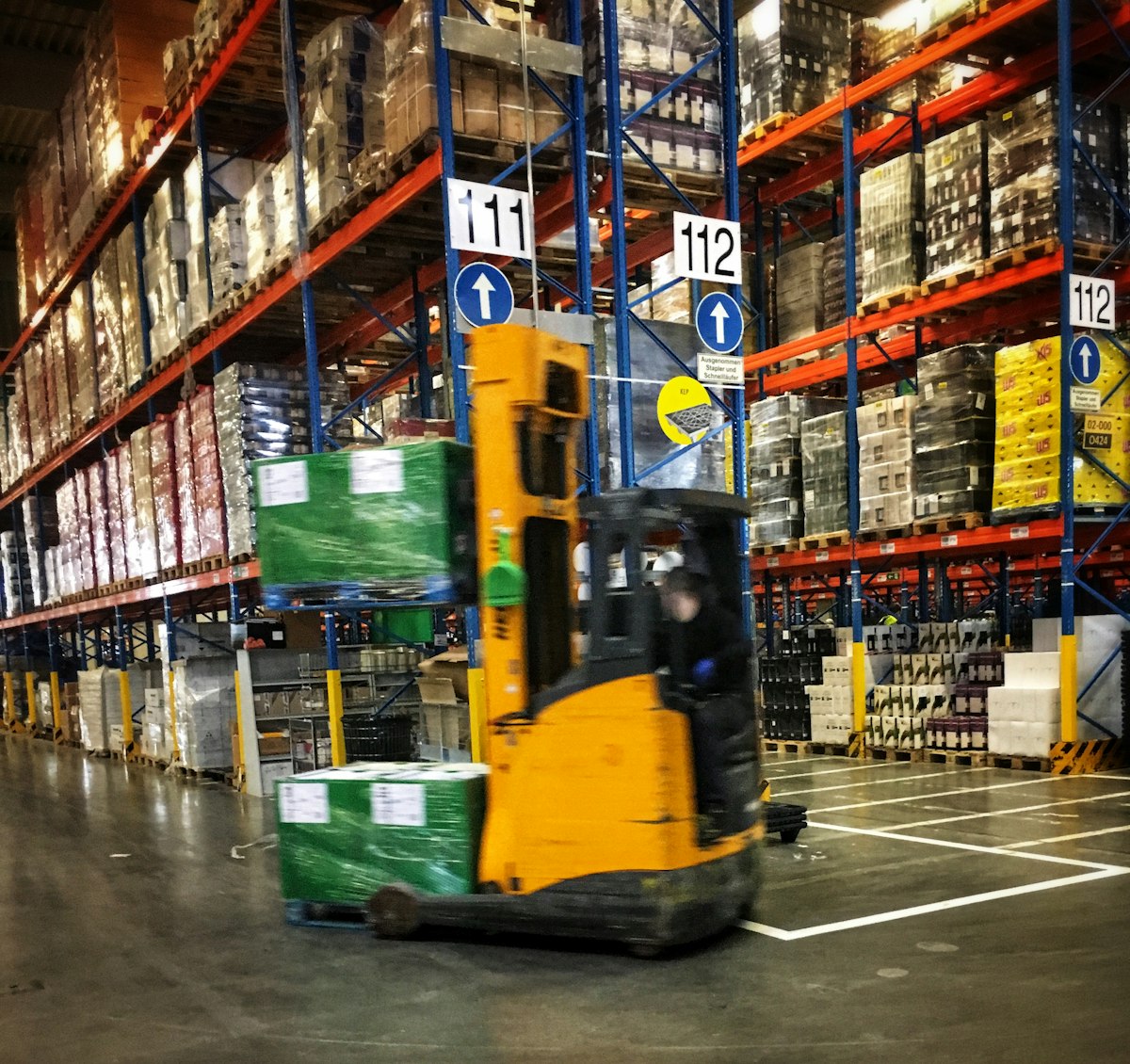

Pallet racking systems
Since 2024, our professional team has successfully completed over 100 projects across every corner of Turkey, providing racking installation, periodic inspection, and sales services.

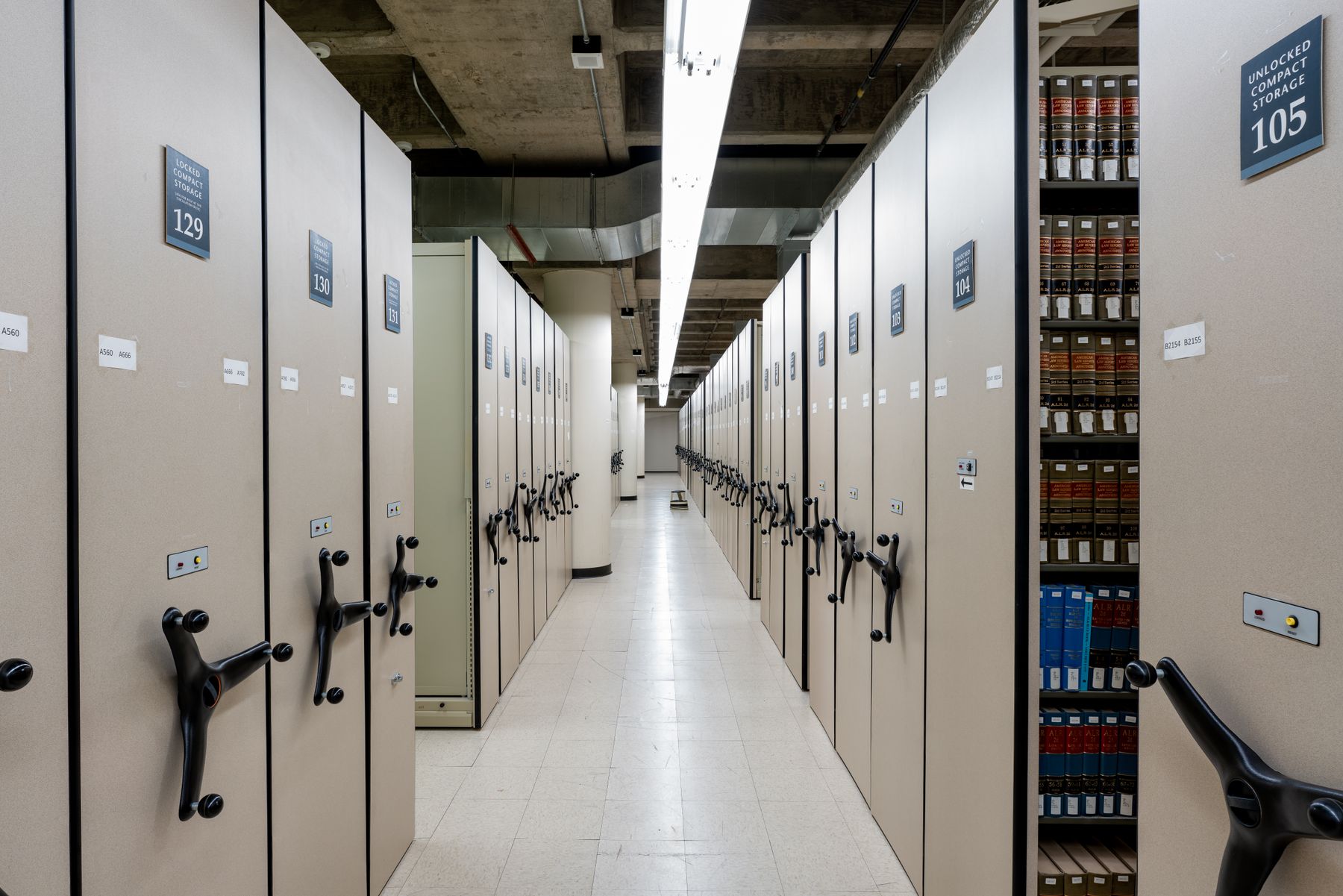

Mobile archive shelving
Rail-mounted units give access through a single aisle. Manual or mechanical drive for public bodies, hospitals, banks and law offices.
Mezzanine floors
Delivered ready for approval with structural engineering designs, including mezzanine floors, rack-supported warehouses, office shelving systems, stairs, and handrails. Tailor-made project design and turnkey delivery based on your needs.
MR-P series uprights and beams are cold-formed from S355 steel. Beam connectors are hook-in with safety locks; uprights are anchored to the floor with chemical or mechanical anchors. Values are indicative and determined by structural calculation for each project.
| Upright profile | 80×60, 90×70, 100×70 mm |
|---|---|
| Sheet thickness | 1.5 – 2.5 mm, S355 steel |
| Beam profile | 80×50 – 140×50 mm box section |
| Bay load | 1,000 – 4,000 kg (two pallets) |
| Upright height | 2,000 – 12,000 mm |
| Bay width | 1,800 / 2,700 / 3,600 mm |
| Bay depth | 800 / 1,000 / 1,100 mm |
| Finish | Powder coating; RAL 5010, RAL 2004, RAL 7016. Galvanised option. |
| Design standards | EN 15512, EN 15620, EN 15629, EN 15635 |
Manufacturer of warehouse, archive and retail shelving systems since 1991. Production in Ankara İvedik OSB, installation across Türkiye.

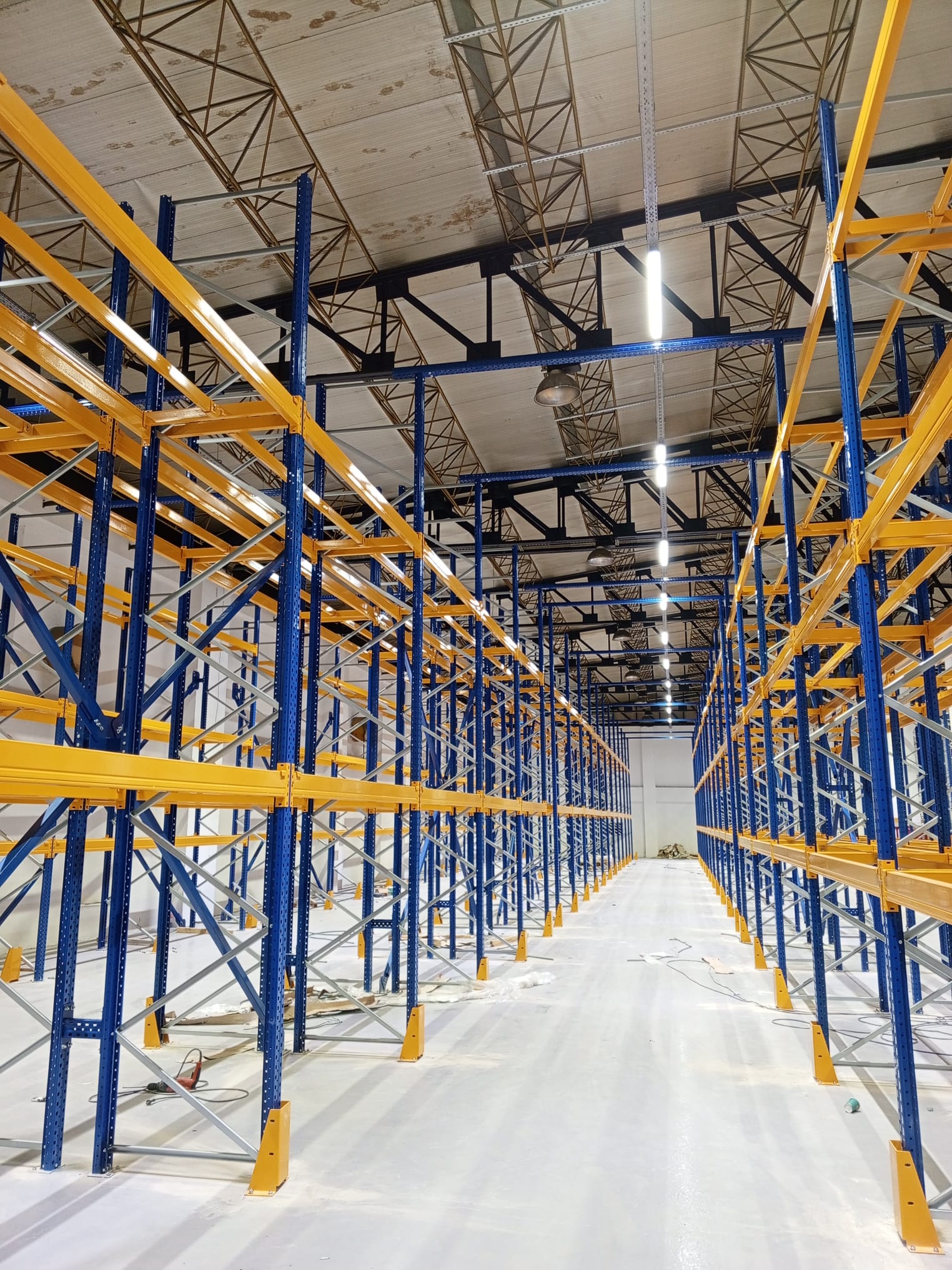

Modrack Racking Systems was founded in Ankara in 1991. At our 6,500 m² plant in İvedik Organised Industrial Zone we manufacture pallet racking, medium and light duty shelving, mobile archive shelving, retail shelving and mezzanine floors.
Uprights, beams and connectors are cut, punched and powder coated on our own lines. We use certified S355 and S235 steel and keep the material certificate for every batch.
To be the preferred manufacturer of warehouse and archive racking systems in Türkiye; to ensure that every system we build serves at its original capacity years later.
To measure our customers' storage needs on site, define the right system by structural calculation, manufacture it in our own plant and install it with our own crew.
Each industry has different load, access and hygiene requirements. The system is selected during the survey based on the goods and the forklift type.
One project manager from survey to handover. Each stage ends with a concrete deliverable for your approval.
The warehouse is measured on site; goods dimensions, pallet type, forklift turning radius and floor condition are recorded.
Deliverable: Measurement sketch
Layout plan and structural calculation to EN 15512 are prepared. An itemised quotation is sent within two business days.
Deliverable: Layout plan and quotation
Profiles are cut, punched and powder coated. The production lead time is stated in the quotation and confirmed before dispatch.
Deliverable: Dispatch notice
Our own crew installs the system; anchors, levels and torque are checked and load notices are fitted.
Deliverable: Handover report and warranty certificate
Download the catalogue, capacity tables and installation manuals directly. Project-specific structural reports are supplied with the quotation.
Current copies of the certificates are sent by e-mail on request.
Fill in the form and our project manager will call you within one business day. If you include the warehouse dimensions and the goods to be stored, we can give an approximate quote in the first call.
